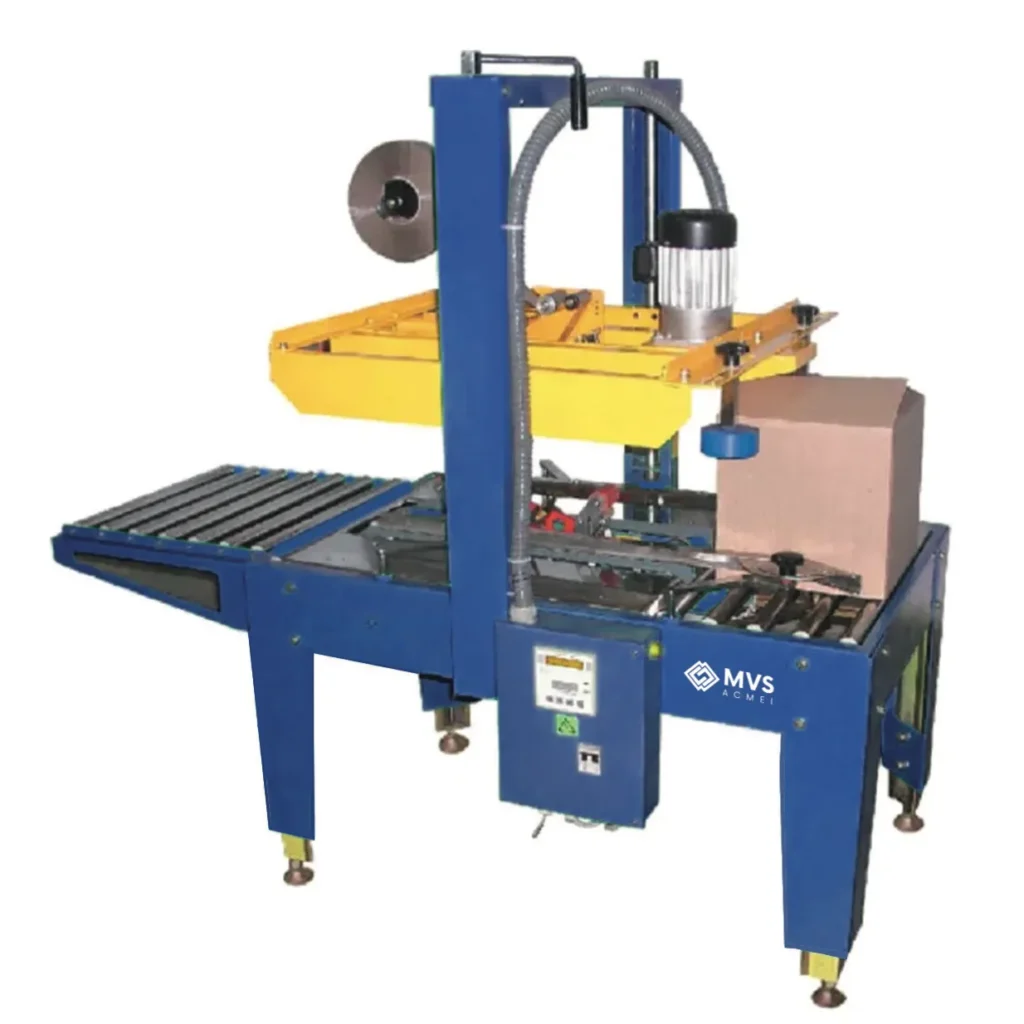

Carton Taping Machine

Modular, Flexible, and Secure Carton Taping Machine

MATPL 450, automates the process of sealing boxes with tapes ensuring secure and reliable packaging for an array of packaging usage. This improves packaging speed and consistency, reduces labour costs and minimizing the risk of human error. MATPL 450 is an energy-efficient taping machine that automatically shuts the sealer off if no box is present. It sustains high machine uptime, carton flexibility, precision, and quality requirements in various applications. With manufacturing packaging tools and machines, we also manufacture high-quality packaging consumables, and highly compatible adhesive tapes in this case. Increase overall plant productivity with our automatic carton-taping machine!

Features

  • Batch Application with enhanced stability
  • Enhance stability with a twin mast column design
  • Twin flap squeeze rollers
  • Consistent belt speed of 20 meters per minute
  • Convenient inbuilt toolbox
  • Accurate self-centring side guides
  • Positive top and bottom drive mechanisms securely seals regular, tall, and heavy cartons

Utility Requirements

  • Power Supply: 415 V AC, 3 Phase, 50 Hz
  • Power Consumption: 100 mm-550 mm 0.4KW
  • Tap Roll Length: 2-50 Kg

Machine Specifications

  • Taping Head: Flexible (2″/2.5″/3″) or 4″
  • Length: 1080 mm
  • Width: 570 mm
  • Height: 1460 mm
  • Weight: 145 Kg
  • Color: RAL5015 (Blue)
  • Drive Motor: 0.25 HP. 2 No.
  • Belt Speed: 20 Metres/ Min
  • Machine Throughput: 20-25 cartons per minute

Case Dimensions

  • Length: 150 mm-Un Limited
  • Width: 570 mm
  • Height: 1460 mm
  • Weight: 45 Kg
  • Carton Ply: Min 3 Ply
